Your door must be closed and unlocked. Insert the battery into the motor. You now have 30 seconds to calibrate using the procedure below. See below.

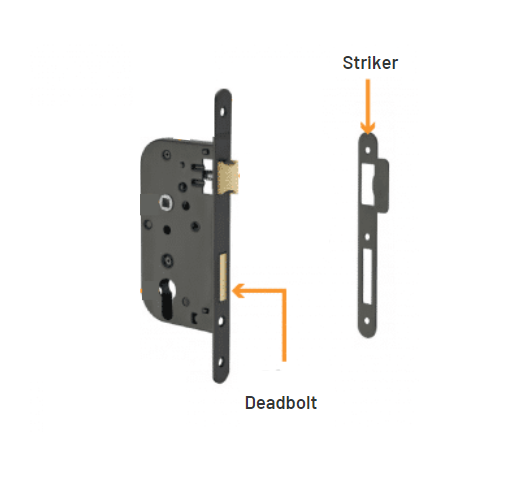

| TO KNOW: you will manually lock and unlock your lock to adjust the stops. During this step be careful not to turn the lock fully. Stop turning as soon as the deadbolt is sufficiently engaged in the striker. |
1. Press the central button for 3sec.
2. Place the lock in the locked position. Choose to turn the lock a turn or two but stop turning before the knob locks.
3. Confirm by pressing the central button for 3sec. You will hear a confirmation beep.
4. Position the lock in the unlocked position.
5. To finalise your calibration, follow one of the operations below depending on whether or not there is a handle on the outside of the door.
A - You have an EXTERNAL HANDLE
The motor only locks and unlocks the door, the opening is done using the handle. Press 3s and release after the first beep.
B - NO EXTERNAL HANDLE
The motor locks, unlocks and opens the door by retracting the latch for 3s. Press for 5s and release after the first beep.
Finally, the motor performs several cycles to confirm the settings. A white LED indicates the success of the procedure. In case of failure, please repeat the procedure from the beginning.
