To add an io-homecontrol® device, first press oon the home icon from the home screen, then:
- "+" icon in the centre of the screen, if this is the first one you are adding
- "star wheel" icon in the top right-hand of the screen, then "+" on the left to add your 2nd and subsequent ones
Once the adding procedure has been started, the monitor will guide you step-by-step. If in doubt, refer to the io-homecontrol® device’s instructions.
E.G.: ADDING AN io-HOMECONTROL® ROLLER SHUTTER
1 / Choose the equipment type (e.g.: Roller Choose the equipment type (e.g.: Roller shutter).
2 / Select the channel onto which you want to add it (e.g.: Channel 1). A roller shutter will appear on the selected channel. Press “Continue”.
3 / Give your channel a name (e.g: Living room): *7 characters max.
Note: The keyboard is set to upper case by default. You can also write in lower case by pressing the "up arrow" button. Press OK.
4 / Now follow the 3 steps displayed on the screen:
a) Identify the original control of the roller shutter, i.e. the remote control or the control point which only controls this roller shutter. Partially open the roller shutter using the original control.
Note:If the original control is lost or broken, and it is the only one that controls the roller shutter, contact one of our Somfy advisers.
If another control operates the roller shutter, use it to follow the steps below.

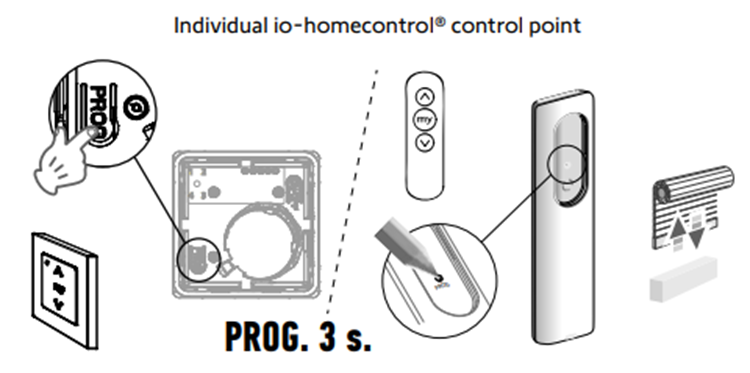

b). Press the original control’s PROG button for at least 3 seconds: the product reacts (for example, with a brief up and down movement for a blind or a roller shutter). The programming function is activated for 10 minutes.
Note: If you cannot locate the PROG button on your control point, refer to the instructions
c ) Press the “Pair” button on the monitor.
5 / Check that pairing has worked by pressing the “Test” button.
6 / . If the roller shutter responds, press “Continue”. If it does not, press “Start again” or “Cancel”.
