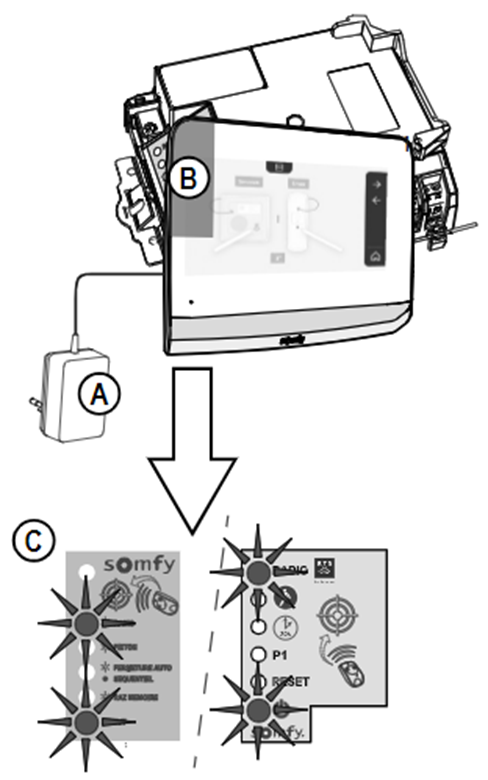

- Bring the monitor to the gate motorisation and connect it using the mains adaptor (A).
- Press on the touch-sensitive key corresponding to the location of the piece of equipment to be memorised.
- Select the pictogram which represents the product to be memorised:
- Open the motorisation cover to access the electronics.
- Press on the power button of your electronics for 2 seconds (if this button does not exist, continue directly to the next step). The indicator light is lit on the electronics.
- Place the monitor on the target on the motor electronic unit (B).
Important: The left-hand section of the monitor must be placed on the electronic unit target so that the monitor can be correctly detected by the motor electronics. - Press the touch-sensitive key corresponding to the arrow to pair the monitor with the product and move on to the next step.
- The indicator light for the motorisation comes on then goes out (C).
- Press the touch-sensitive keys corresponding to the commands and and check the behaviour of the paired product.
If the product in question reacts correctly, press the touch-sensitive key corresponding to validate.
If you press on it , the paired product is displayed on the right of the start screen.
