Press on the touch-sensitive key corresponding to the location of the first piece of equipment to be memorised.
Unless otherwise indicated, each step must then be validated to move on to the next step.

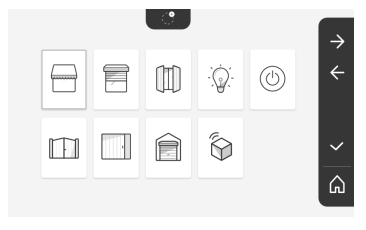

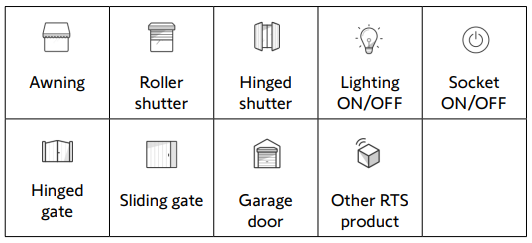

Select the pictogram which represents the product to be memorised:
Press the PROG button of an RTS transmitter already paired with this product for 3 seconds: the product should react. Refer to the product instructions if it is a gate or garage door motorisation.
Press the touch-sensitive key corresponding to the arrow to pair the monitor with the product and move on to the next step.
Press the touch-sensitive key corresponding to the arrow to go back
Press the touch-sensitive keys corresponding to the commands
and check the behaviour of the paired product.
If the product in question reacts correctly, press the touch-sensitive key corresponding to validate
If the product in question does not react correctly, press the touchsensitive key corresponding to do not validate
to begin the previous steps again.
If you press on , the paired product is displayed on the right of the start screen.
Repeat as many times as necessary to pair all RTS products on the V®350 monitor.
