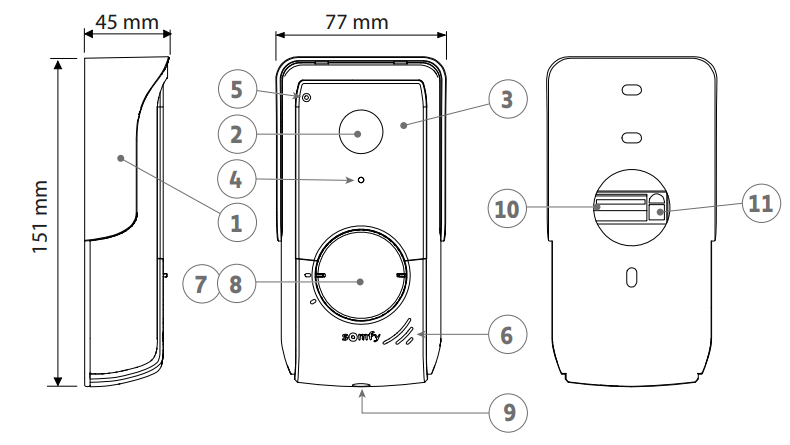

Door station

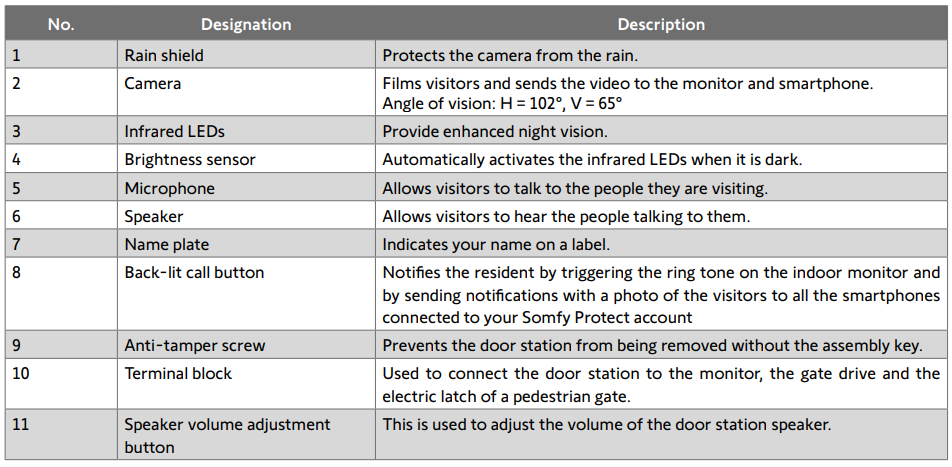

Characteristics of the door station

  • Outputs:
  • Electric latch (pedestrian gate): max. power 12 V, 800 mA / activation time: 2, 5 or 10 seconds
  • Gate: dry contact activation time: 1 second
  • Mounting: surface mounting with rain shield
  • Materials: aluminium and plastic
  • Index protection rating: IP54
  • Operating temperature: -20°C to +55°C
