• Check that your video door phone is still powered off.
• Strip the previously identified power supply and call station cables over a length of 10 mm.

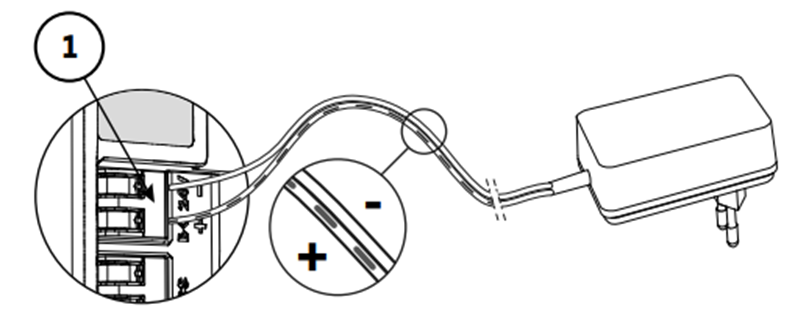

• On the back of the monitor connectivity module, insert the 2 power supply cables up to the stop blocks on terminal block DC 24V [1], observing the correct polarity.
Reminder: do not hesitate to use the photo taken at the start of the installation process.
NB: To avoid damaging the tabs on the stop block, use a fine screwdriver to press on them and release the pressure.
• Insert the 2 call station power supply cables up to the stop blocks on terminal block CS/Call station [2].
The polarity is irrelevant.
• Check that the cables are correctly inserted into the terminal blocks by pulling on them gently, then fit them in the specially provided notch [3]. If the cables (power supply/call station) do not protrude from the wall, do not route them via the mounting bracket, use the specially provided cable tray [4].
• Fasten the assembly on the mounting bracket by sliding it gently downwards onto the stop block.
