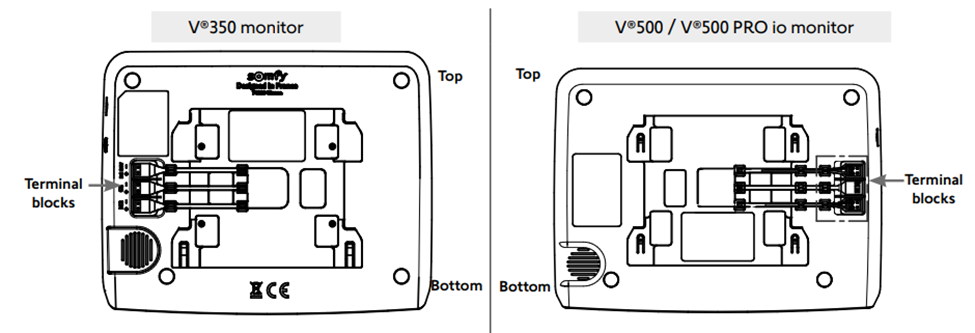

Mount the monitor on a bracket, with the screen downwards in the direction shown below, and making sure that it is protected.

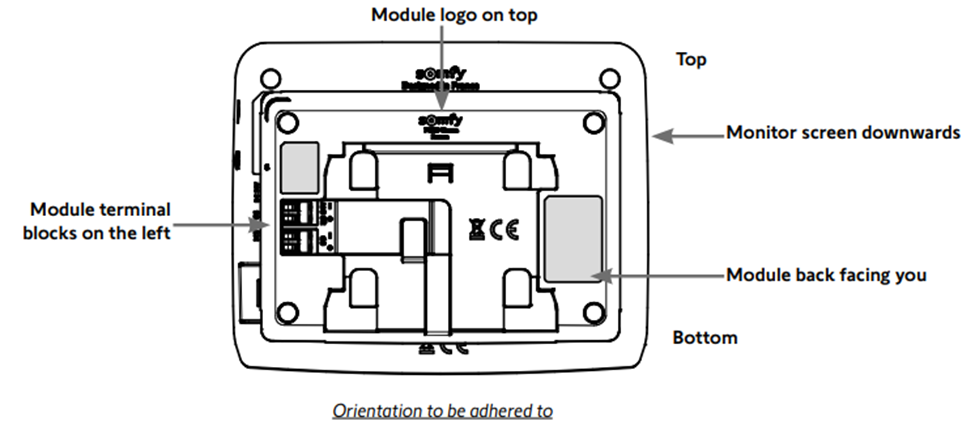

Without connecting it, position the connectivity module on the back of the monitor, adhering to the orientation below:

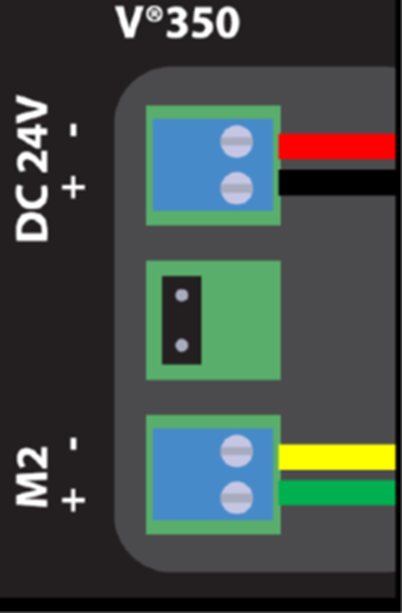

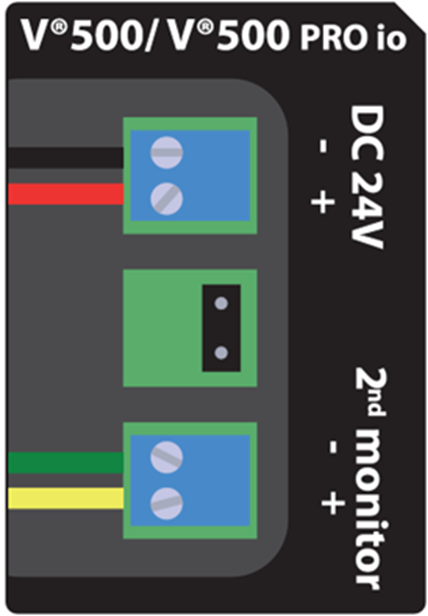

• Connect the connectivity module connection cables to the back of the monitor:

- The blue power supply connector fitted with red and black wires on the 24V DC terminal block.

- The call station blue connector fitted with yellow and green wires on the 2nd monitor terminal block.

- Do not connect anything to the Call Station terminal block.

• Insert all the cables into the cable grommets.
