UNINSTALLING THE INDOOR MONITOR
• Unhook the indoor monitor from its mounting bracket by sliding it upwards.
• Leave the mounting bracket in place.
• Memorise or take a photo of the connection on the back of the monitor, in order to identify
the power supply cables (24V DC) and the call station (CS).
Without undoing the blue connectors on the cables, disconnect all the connectors to release the monitor.
|
Important: if you have a second monitor, this is incompatible with the connectivity module. You will no longer be able to deal with visitors calling at the call station. Conversely, you can continue to use it to control Somfy RTS/io equipment, or to run scenarios (V®500 PRO io monitor only). |

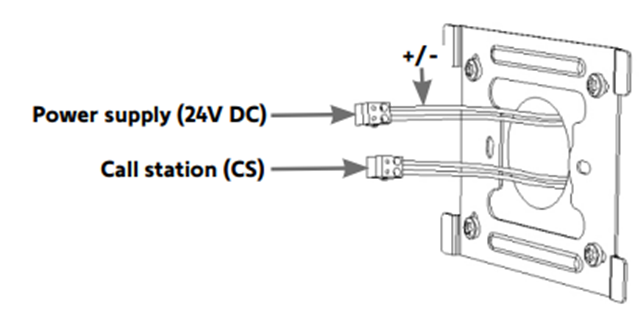

Using the photo taken:
- Identify the 2 power supply wires (24V DC terminal block) via the polarity (+ and -).
- Identify the 2 call station wires (CS terminal block). The polarity is irrelevant.

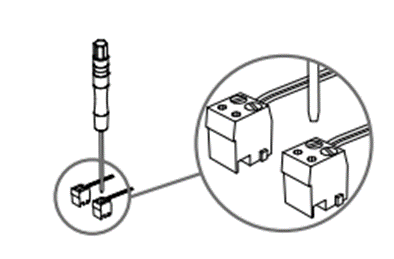

• Using the screwdriver supplied, unscrew the blue connectors from the identified cables.These are no longer reusable.
