To add Somfy RTS equipment, first press from the home screen, then:
-
in the centre of the screen, if this is the first one you are adding
-
in the top right-hand of the screen, then
Once the adding procedure has been completed, the monitor will guide you on a step-by-step basis. If in doubt, refer to the Somfy RTS equipment's instructions.
Example: Adding a Somfy RTS roller shutter
1 / Choose the type of equipment (e.g.: roller shutter).:
2 /. Select the channel on which you want to add it to (e.g.: Channel 1). A roller shutter then appears on the selected channel. Press "Continue".
3 / Give your channel a name (e.g: Living room): *7 characters max.
Note: The keyboard is set to upper case by default. You can also write in lower case by pressing key . Press OK.
4 / Now follow the 3 steps displayed on the screen:
a). Identify the original control of the roller shutter, i.e. the remote control or the control point which only controls this roller shutter. Partially open the roller shutter using the original control. Note: - If the original control is lost or broken, and it is the only one that controls the roller shutter, contact one of our Somfy advisors. - If another control operates the roller shutter, use that to follow the steps below.

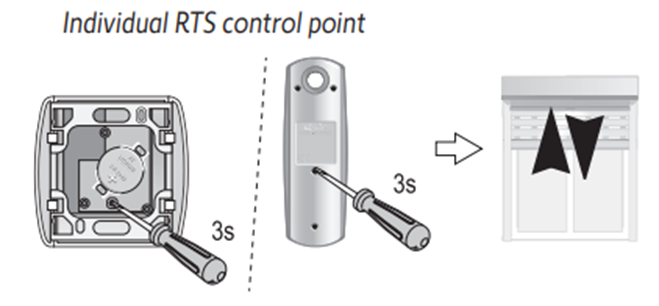

b). Press the original control's PROG button for at least 3 seconds: the product reacts (for example, with a brief up and down movement for an awning or a roller shutter). The programming function is activated for 2 minutes. Note: If cannot locate the PROG button on your control point, refer to the instructions.
c). Press the "Pair" button on the monitor.
